The individuals who achieve the passing score in the Cisco 300-630 exam fulfill part of the requirements for getting the CCNP Data Center certification (they have to nail the 350-601 DCCOR test as well). With this certificate, the specialists can explore a wide range of job roles, such as a Data Center Engineer, a Senior Network Engineer, a Data Center Technician, a Technical Consulting Engineer, a Data Center Support, and a Network Analyst. The average salary outlook for the certified professionals is $79,000 per annum. Some senior-level applicants can earn $111,000 per year.
NEW QUESTION 16

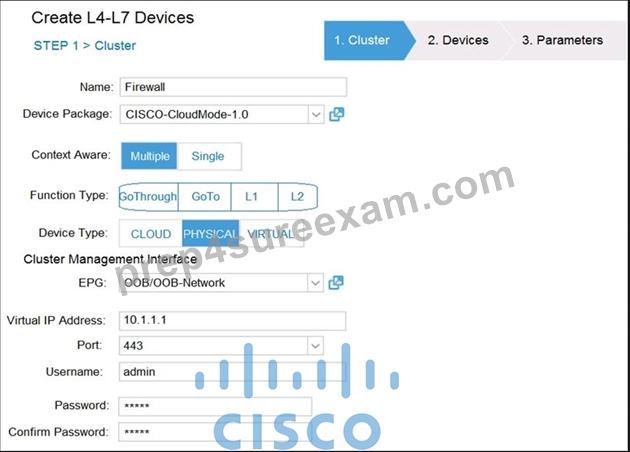

Refer to the exhibit.
A network engineer configures a Layer 4 to Layer 7 device for an outside routed firewall that is connected to POD-1 inside a Cisco ACI fabric that consists of two pods. All traffic from POD-1 or POD-2 that uses the L3Out should pass through the routed firewall. Which Function Type must be implemented in the service graph for POD-2 to use L3Out?
- A. L1
- B. GoTo
- C. L2
- D. GoThrough
Answer: C
NEW QUESTION 17

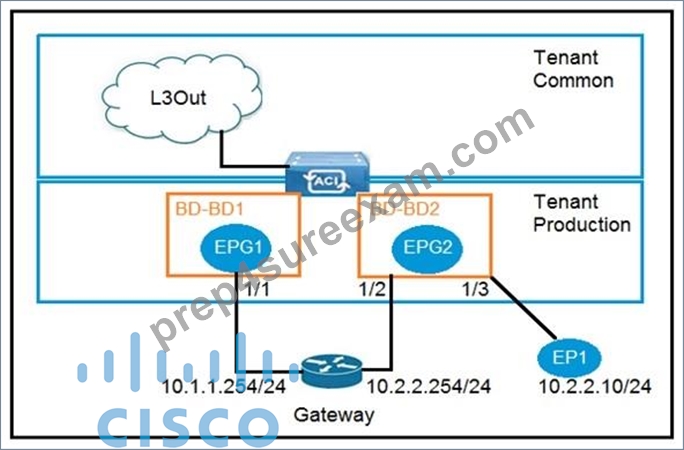

Refer to the exhibit.
An engineer wants to avoid connectivity problems for the endpoint EP1 when it reaches an external L3Out network through the gateway 10.2.2.254/24. Which two configurations must be implemented in BD-BD2? (Choose two.)
- A. Enable IP data plane learning for the VRF
- B. Enable unicast routing
- C. Enable ARP flooding
- D. Disable unicast routing
- E. Disable ARP flooding
Answer: D,E
NEW QUESTION 18
An engineer configures a new Cisco ACI Multi-Site Orchestrator node to join an MSO cluster. Which two components are necessary to ensure that the new node has IP connectivity in this configuration? (Choose two.)
- A. management IP of ESXi hosts where the controllers are deployed
- B. OOB interface of ISN
- C. Cisco ACI spine interfaces that are connected to ISN
- D. existing Cisco ACI Multi-Site Orchestrator node
- E. Cisco APICs over the OOB management network
Answer: D,E
NEW QUESTION 19
An engineer is implementing the Cisco ACI fabric but is experiencing loops detected from endpoints. When the issue was investigated, it was discovered that the packets are received with the same source IP address but from different leaf switch ports. The engineer must prevent the issue from happening in the future and make sure that the port is brought back up if it was disabled due to the loop discovered. Which set of actions must be taken to meet these requirements?
- A. Enable reverse path forwarding and set the Hold Interval
- B. Enable the enforce endpoint check and set the Rouge EP detection interval
- C. Enable the rogue endpoint and set the Error Disabled Recovery Policy
- D. Enable the remote endpoint limit and set the Interface override
Answer: C
NEW QUESTION 20
An engineer creates the objects that must be deployed at each site in Cisco ACI Multi-Site Orchestrator. Which action should be taken before the schema can be associated with the newly configured site?
- A. Configure the Infra Site-Specific Settings
- B. Configure a provider for the Cisco ACI Multi-Site Orchestrator
- C. Import existing policies from an existing tenant to Cisco ACI Multi-Site Orchestrator
- D. Attach the templates to the newly configured site
Answer: D
NEW QUESTION 21
An organization deploys active-active data centers and active-standby firewalls in each data center. Which action should be taken in a Cisco ACI Multi-Pod to maintain traffic symmetry through the firewalls?
- A. Disable Resilient Hashing
- B. Disable service node Health Tracking
- C. Enable Pod ID Aware Redirection
- D. Enable Endpoint Dataplane Learning
Answer: B
NEW QUESTION 22
What are two characteristics of Cisco ACI and Spanning Tree Protocol interaction? (Choose two.)
- A. When a TCN BPDU is received in a VLAN, Cisco ACI flushes the endpoints for the associated encapsulation.
- B. MST BPDUs are flooded correctly in Cisco ACI fabric without additional configuration.
- C. BPDU filter and BPDU guard can be configured on Cisco ACI leaf edge ports.
- D. STP BPDUs are dropped due to MCP.
- E. Cisco ACI must be configured as the STP root for all VLANs.
Answer: C,E
Explanation:
Section: Traditional network with ACI
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/aci_virtual_edge/configuration/1-x/ b_Virtual_Edge_Config_Guide_1_2_2/b_Virtual_Edge_Config_Guide_1_2_2_chapter_0101.html
NEW QUESTION 23
Where are STP BPDUs flooded in Cisco ACI fabric?
- A. in the access encapsulation VLAN part of different VLAN pools
- B. in the native VLAN ID
- C. in the bridge domain VLAN
- D. in the VNID that is assigned to the FD VLAN
Answer: C
NEW QUESTION 24

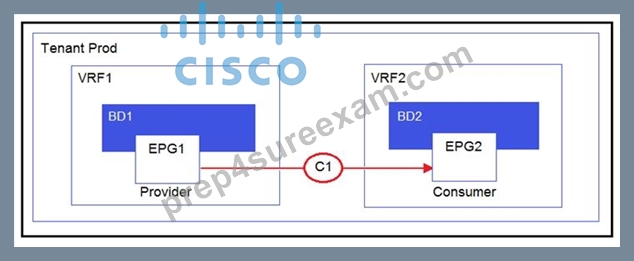

Refer to the exhibit.
Which two configurations enable inter-VRF communication? (Choose two.)
- A. Set the subnet scope to Shared Between VRFs
- B. Export the contract and import as a contract interface
- C. Enable Advertise Externally under the subnet scope
- D. Change the contract scope to Tenant
- E. Change the subject scope to VRF
Answer: B,C
NEW QUESTION 25
A network engineer configured an active-active firewall cluster that is stretched across separate pods in the Cisco ACI fabric. Which two implementation setups for anycast services are available? (Choose two.)
- A. Deselect No Default SVI Gateway under EPG Subnet
- B. Modify the MAC address on the second firewall
- C. Configure the firewalls behind an EPG subnet
- D. Modify the Cisco ACI contract scope
- E. Deploy a Layer 4 to Layer 7 service graph with PBR
Answer: B,C
NEW QUESTION 26
Cisco ACI fabric is migrated from network-centric mode to application-centric mode. What is possible in an application-centric design?
- A. Cisco ACI VMM integration with hypervisors
- B. remapping of VLAN pools
- C. migration of bare metal servers to virtual machines
- D. creation of additional EPGs under one bridge domain
Answer: D
Explanation:
Section: Traditional network with ACI
Explanation/Reference:
NEW QUESTION 27
What two actions should be taken to deploy a new Cisco ACI Multi-Pod setup? (Choose two.)
- A. Connect all spines to the IPN
- B. Increase interface MTU for all IPN routers to support VXLAN traffic
- C. Configure MP-BGP on IPN routers that face the Cisco ACI spines
- D. Configure anycast RP for the underlying multicast protocol
- E. Configure the TEP pool of the new pod to be routable across the IPN
Answer: A,B
NEW QUESTION 28
How does Cisco ACI manage the STP BPDUs between two pods?
- A. Cisco ACI spines perform ingress replication for STP BPDUs
- B. Cisco ACI spines suppress STP BPDUs to be forwarded to other pods
- C. Special multicast group 239.255.255.255 is used to forward STP BPDUs
- D. BPDUs are forwarded over IPN using the bridge domain GIPo multicast address
Answer: D
NEW QUESTION 29
An engineer must limit local and remote endpoint learning to the bridge domain subnet. Which action should be taken inside the Cisco APIC?
- A. Enable Limit IP Learning to Subnet
- B. Disable Endpoint Dataplane Learning
- C. Disable Remote EP Learn
- D. Enable Enforce Subnet Check
Answer: D
Explanation:
Section: ACI Packet Forwarding
Explanation/Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric- infrastructure/white-paper-c11-739989.html
NEW QUESTION 30
Refer to the exhibit.
Which three actions should be taken to implement the vPC in the Cisco ACI fabric? (Choose three.)
- A. Select common interface profiles
- B. Select individual interface profiles
- C. Select common switch profiles
- D. Select individual switch profiles
- E. Select a common vPC interface policy group
Answer: B,C,E
NEW QUESTION 31
An engineer must allow routes learned from one L3Out to be advertised out another L3Out. The engineer does not have an explicit list of all the routes that must be advertised out, however, they know that they are all part of the 10.16.0.0/16 CIDR block. Which attributes must be selected under Ext-EPG to allow the necessary routes to be advertised out?
- A. Enable Export Route Control Subnet and enable Shared Route Control Subnet
- B. Disable Shared Route Control Subnet and enable Aggregate Shared Routes
- C. Enable Export Route Control Subnet and enable Aggregate Export
- D. Enable Export Route Control Subnet and disable Aggregate Shared Routes
Answer: C
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/ b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_01001.html
NEW QUESTION 32

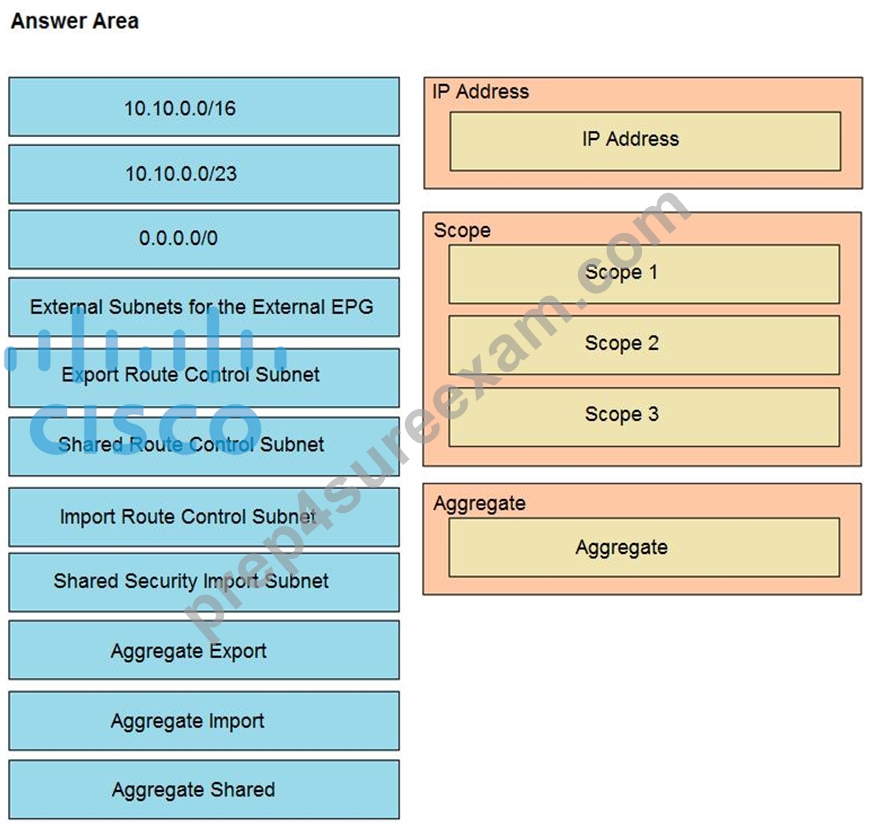

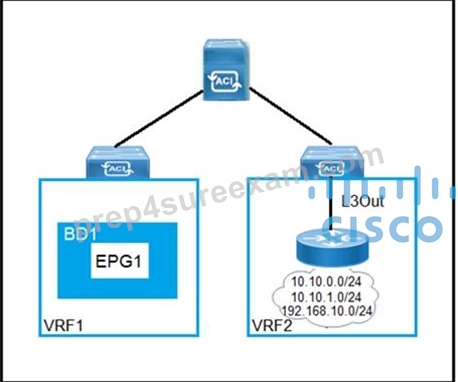

Refer to the exhibit. Drag and drop the subnets and flags from the left into the External Network Instance Profile policies on the right to create a setup that advertises only 10.10.0.0/24 and 10.10.1.0/24 prefixes in VRF1 and establishes connectivity between VRFs. Not all options are used.

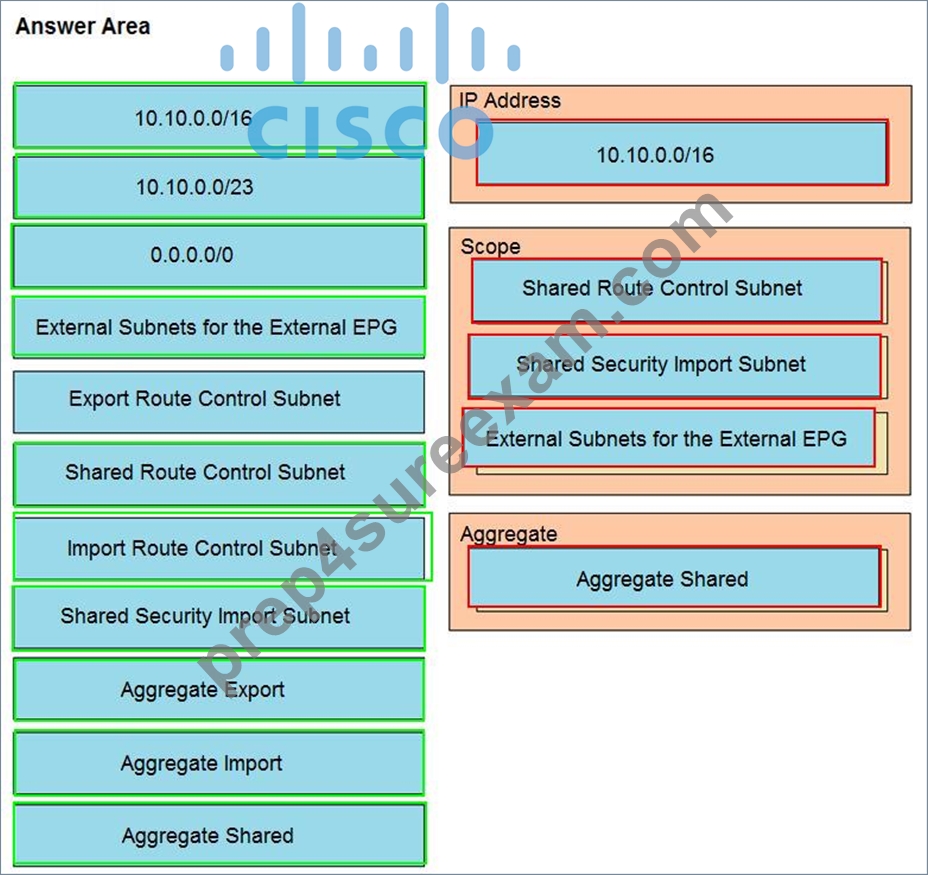

Answer:
Explanation:
NEW QUESTION 33

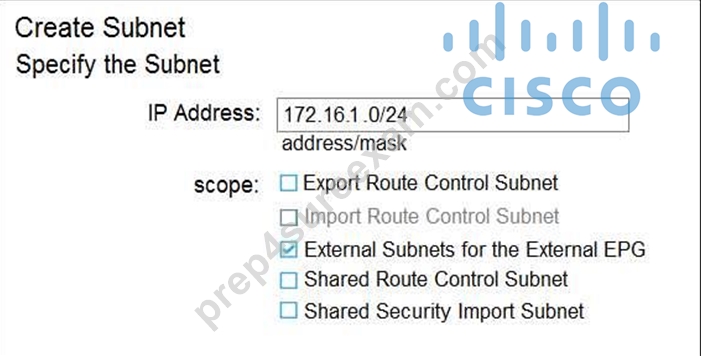

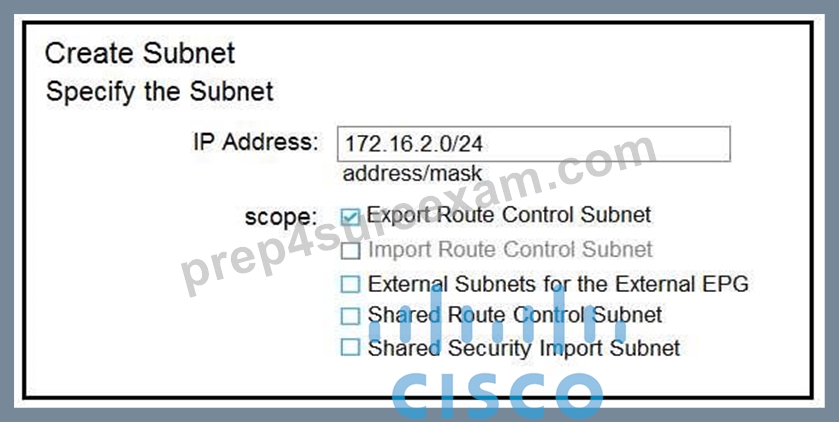

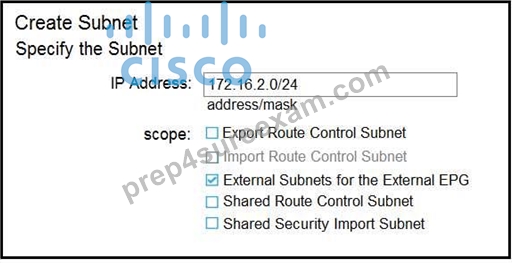

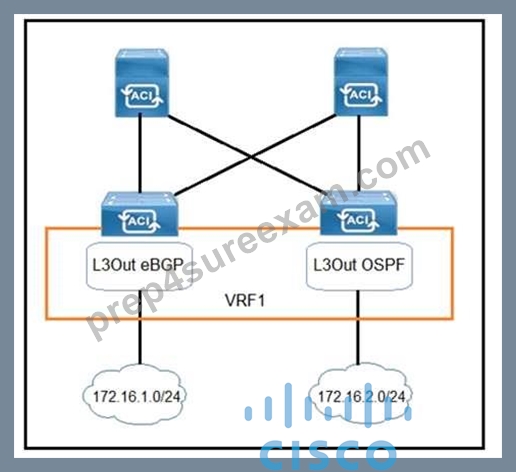

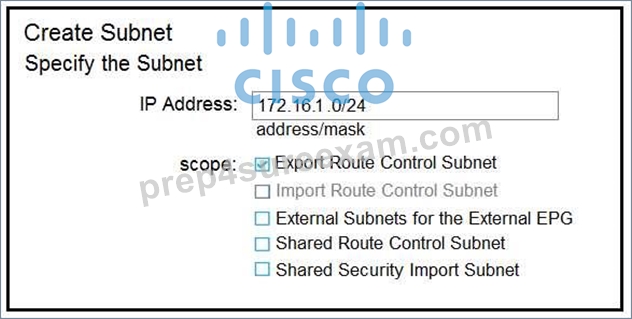

Refer to the exhibit. Which configuration must be implemented on L3Out EBGP to advertise out of the fabric
172.16.2.0/24 network that is learned from L3Out OSPF?
- A.
- B.
- C.
- D.
Answer: D
Explanation:
Section: Advanced ACI Policies and Integrations
NEW QUESTION 34
An engineer designs a Cisco ACI Multi-Pod solution that requires a pair of active-standby firewalls in different pods for external connectivity. How should the firewalls be implemented?
- A. PBR for routed firewalls
- B. separate L3Out peerings for routed firewalls
- C. routed firewall for the default gateway
- D. transparent firewalls
Answer: D
Explanation:
Section: Multipod
Explanation/Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric- infrastructure/white-paper-c11-739571.html
NEW QUESTION 35
Which feature should be disabled on a bridge domain when a default gateway for endpoints is on an external device instead of a Cisco ACI bridge domain SVI?
- A. unicast routing
- B. unknown unicast flooding
- C. proxy ARP
- D. ARP flooding
Answer: B
NEW QUESTION 36
Which feature should be disabled on a bridge domain when a default gateway for endpoints is on an external device instead of a Cisco ACI bridge domain SVI?
- A. unicast routing
- B. unknown unicast flooding
- C. proxy ARP
- D. ARP flooding
Answer: B
Explanation:
Section: Advanced ACI Policies and Integrations
NEW QUESTION 37
What is a characteristic of a stretched bridge domain solution between Cisco ACI sites with Layer 2 flood disabled?
- A. Headend replication is used for BUM traffic between sites.
- B. IP mobility is ensured between sites for disaster recovery.
- C. The application profile that is associated to the bridge domain have local significance in each site.
- D. The tenant and VRF that associated to the bridge domain have local significance in each site.
Answer: D
NEW QUESTION 38

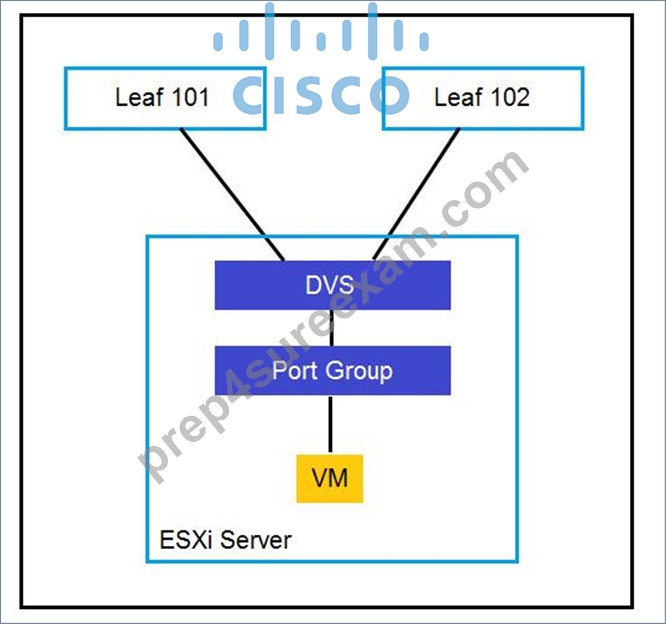

Refer to the exhibit.
An engineer is configuring a vSwitch policy in the existing Cisco ACI fabric. The requirement is for the Cisco ACI leaf to learn individual MAC addresses from the same physical port. Which vSwitch policy configuration mode must be enabled to meet this requirement?
- A. LACP passive
- B. MAC pinning
- C. LACP active
- D. MAC binding
Answer: B
NEW QUESTION 39
An organization deploys active-active data centers and active-standby firewalls in each data center. Which action should be taken in a Cisco ACI Multi-Pod to maintain traffic symmetry through the firewalls?
- A. Disable Resilient Hashing
- B. Disable service node Health Tracking
- C. Enable Pod ID Aware Redirection
- D. Enable Endpoint Dataplane Learning
Answer: B
Explanation:
Section: Multipod
NEW QUESTION 40
......
